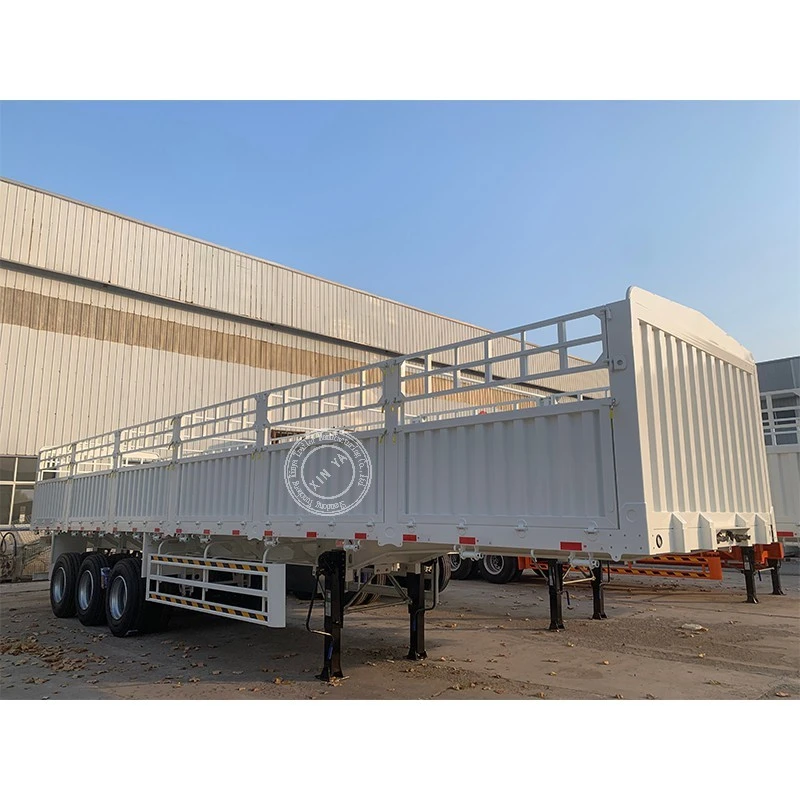

Fence Stake Semi Truck Trailer
Loj: 12990 * 2540 * 3485 lossis customized
Thauj khoom: 60T
Axle: 3 qag
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. yog ib qho ntawm cov tuam txhab ua lag luam thiab cov chaw muag khoom ntawm lub laj kab stake semi tsheb thauj khoom hauv Suav teb, tshwj xeeb los ntawm cov kev pabcuam zoo thiab cov kev pabcuam OEM. Yog hais tias koj yuav mus yuav CE pom zoo laj kab stake semi tsheb trailer, txais tos kom tau txais cov lus hais los ntawm peb lub hoobkas.
Khoom Paub meej
Lub laj kab ncej ntawm cov qauv no yog ntsug tuab steel kab nrog qhov sib nrug ntawm li 1 meter, uas tuaj yeem muab tshem tawm / tig thiab tig mus rau hauv lub tsheb thauj khoom thaum tshem tawm. Kab rov tav kab txuas kab sib txuas los ua ib daim phiaj, muab qhov cua thiab tiv thaiv cov khoom thauj los ntawm kev poob.
Khoom Parameters
Lub Sijhawm Lead: Raws li qhov ntau thiab cov caij nyoog, lub sijhawm ua haujlwm txawv.
|
Zuag qhia tag nrho qhov loj (L * W * H) hli |
12990*2540* 3485 |
|
Khoom siv |
Q345B tsim carbon steel |
|
Main beam |
Hom: ncaj hom; Qhov siab: 480mm; Sab saum toj phaj: 14mm; Hauv qab phaj: 16mm Nruab nrab phaj: 8mm Txheej txheem: welded los ntawm tsis siv neeg submerged -acr |
|
Platform |
3mm checker phaj |
|
Twist xauv |
12 units (tuaj yeem xa 40 lossis 20 ko taw thawv) |
|
tsaws iav |
Peev xwm & 28T, Hom JOST |
|
Kev ncua |
Mechanical system nrog beams equalizer |
|
Qag |
13T HCSV Hom nrog ABS thiab tsis siv neeg slack adjuster & 3 units |
|
Hluav taws xob qhov system |
24V LED teeb; cov xaim dej tsis zoo; 7 txoj kev (7 hlau hlua); Tail teeb nrog tig teeb liab & nres teeb & sab teeb & reflector thiab lwm yam. |
|
Lub log |
12R22.5 & 12 units, Hom Daim duab peb sab |
Peb lub tuam txhab
Npog thaj tsam ntawm ntau tshaj 160 daim av, peb lub Hoobkas tau nruab nrog tag nrho cov txheej txheem vuam tsis siv neeg, txiav thiab kev tshaj lij los tiv thaiv- cov khoom siv txheej txheej. Peb muaj ntau tshaj 300 tus neeg ua haujlwm tshaj lij thiab muaj peev xwm tsim tau txhua xyoo ntawm 3,000 txog 5,000 units. Peb cov khoom lag luam suav nrog lub teeb hnyav lub thawv trailer, kab hlau rhuav sab trailer, kab laj kab semi-trailers, pob tseg trailers, thawv pob txha trailer, qis txaj trailers thiab customized tsheb tshwj xeeb.
Peb Qhov Zoo
1.Our laj kab semi-trailer hnyav 0.5-1.2 tons sib zog dua li lub Hoobkas tsheb thauj khoom (kwv yees li 7.5-8.5 tons rau 3-axles).
2.Lub thav duab yog ua los ntawm siab - lub zog steel thiab optimized los ntawm finite element tsom xam, uas yog nyias thiab nruam, lub teeb thiab muaj peev xwm rub
3.Lub paj railing / warehouse grid txais hollow thiab siab - lub zog square tubes, uas tsis tsuas yog txo qhov hnyav tab sis kuj muaj zog.
FAQ
1.Puas muaj pes tsawg axles ua koj semi-trailers muaj?
A: Peb muaj 2- qag, 3 qag thiab ntau qag qauv rau kev xaiv.
2. Cov khoom siv dab tsi koj siv rau lub cev trailer?
A: Peb txais siab - steel hlau, ruaj thiab tiv thaiv - corrosion.
3. Lub peev xwm thauj khoom yog dab tsi?
A: Tus qauv thauj khoom muaj peev xwm yog li 40-60 tons, tuaj yeem hloov kho raws li qhov xav tau.
Cim npe nrov: Tuam Tshoj laj kab stake semi tsheb trailer manufacturers, lwm tus neeg, Hoobkas
