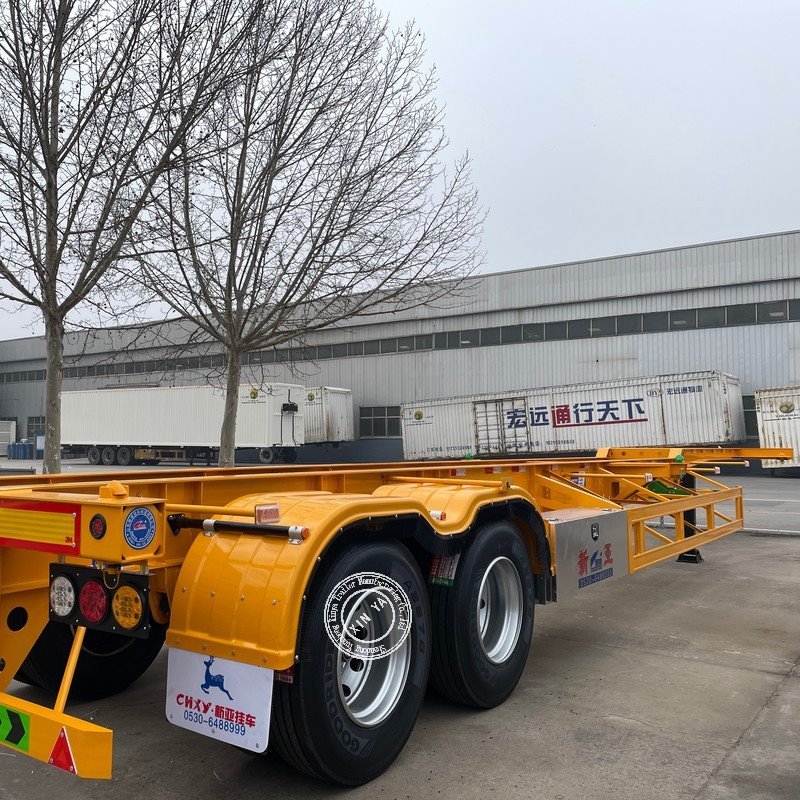

Thawv Skeleton Trailer
Loj: 12350 * 2480 * 1520 lossis customized
Qhov hnyav: 5.6-5.7T
Thauj khoom: 30-40T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm lub cev pob txha trailer hauv Suav teb, tshwj xeeb los ntawm cov kev pabcuam zoo thiab cov kev pabcuam OEM. Yog hais tias koj yuav mus yuav CE pom zoo thawv skeleton trailer, txais tos kom tau txais cov lus hais los ntawm peb lub hoobkas.
Khoom Paub meej
Peb cov txheej txheem khoom: tag nrho tsis siv neeg submerged arc vuam, tsheb sandblasting xeb tshem tawm + epoxy primer + RAL lub teb chaws tus qauv topcoat. Traction pin lub rooj zaum: ob npaug - txheej 20mm tuab steel phaj, pem hauv ntej thiab nram qab tiv thaiv - kev sib tsoo tag nrho cov ncej.
Khoom Parameters
Lub Sijhawm Lead: Raws li qhov ntau thiab lub caij nyoog, lub sijhawm ua haujlwm txawv.
|
Zuag qhia tag nrho qhov loj (L * W * H) hli |
12350*2480*1520 |
|
Khoom siv |
Q345B tsim carbon steel |
|
Main beam |
Hom: Gooseeneck style Qhov siab: 500mm; Sab saum toj phaj: 14mm; Hauv qab phaj: 16mm Nruab nrab phaj: 8mm |
|
Twist xauv |
12 units |
|
tsaws iav |
28T tag nrho Lifting peev thiab 50T muaj peev xwm zoo li qub; ob zaug ceev; loj pad taw; JOST / Tuam Tshoj Hom |
|
Kev ncua |
Mechanical suspension (90 × 16mm) lossis Cua ncua kev kawm |
|
Qag |
Hom Lub Npe: BPW/FUWA/XINYA Peev xwm: 13T QTY: 3 units |
|
Hluav taws xob qhov system |
24V LED teeb; cov xaim dej tsis zoo; 7 txoj kev (7 hlau hlua); Tail teeb nrog tig teeb liab & nres teeb & sab teeb & reflector thiab lwm yam. |
Peb lub tuam txhab
XINYA Trailer tau koom tes nrog kev tsim khoom trailer rau 15 xyoo. Nws yog lub siab - thev naus laus zis, tshwj xeeb, thiab cov chaw tsim khoom tshiab nrog cov kab tsim khoom ntse uas tswj hwm qhov zoo. Ob qhov chaw muag khoom thiab kev txiav txim siab tuaj yeem lees txais. Cov khoom raug xa tawm mus rau ntau lub teb chaws thoob ntiaj teb, nrog rau kev ua tiav daim ntawv pov thawj, ib qho - xyoo lav tsheb, thiab kev pabcuam kev lag luam txawv teb chaws
Peb Qhov Zoo
1.400 lub teb chaws tom qab -muag xov tooj kub, ib qho - ntawm- ib tus neeg saib xyuas kev lag luam txawv teb chaws los ua raws li kev txiav txim thoob plaws tag nrho cov txheej txheem, los ntawm kev hais lus, kev tsim khoom, kev xa khoom, mus rau kev lis kev cai clearance
2.Ua cov duab / yeeb yaj kiab ntawm tag nrho cov txheej txheem ua ntej xa khoom rau kev khaws cia, thiab muab kev hloov pauv dawb ntawm cov khoom siv puas thaum tuaj txog raws li cov duab tiag tiag; Muab cov khoom qub qub rau cov neeg siv khoom txawv teb chaws ntawm tus nqi ntawm lub neej;
3.Cov kev pab cuam tag nrho ntawm txhua pawg ntawm lub cev pob txha trailer (tso / txuas ntxiv / tub yees / cov pob txha raug mob), nrog rau OEM customization rau lub cev xim, ncua kev kawm, thiab tus pin loj;
FAQ
1. Yuav tiv tauj, sib tham thiab koom tes nrog XINYA trailer li cas?
A. Ua siab zoo hu rau XINYA pab pawg thoob ntiaj teb los ntawm Email / Xov tooj thiab lwm txoj kev sib txuas lus zoo.
2. Peb puas tuaj yeem luam peb lub logo?
A. Yog, peb muab kev pabcuam OEM.
3. Thaum twg kuv tuaj yeem tau txais tus nqi?
A. Feem ntau peb hais hauv 24 teev tom qab peb tau txais koj qhov kev nug.
Cim npe nrov: Tuam Tshoj skeleton trailer manufacturers, lwm tus neeg, Hoobkas
